THOR GC-810 Post Bed Roller Foot Sewing Machine

The THOR GC-810 is a drop feed lockstitch post bed machine that uses precise bevel gears to transfer power from the main shaft to the hook shaft thereby providing smooth and quiet operation.

A push button stitch regulator and manual reverse lever make this series easy to operate.

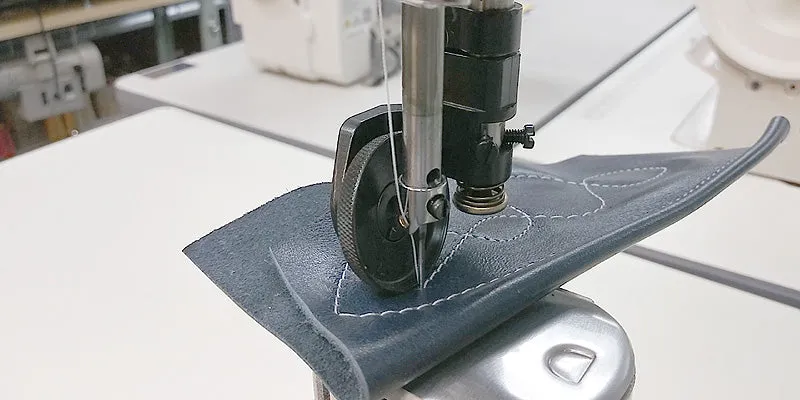

This machine is equipped with a top roller foot to assist in material feeding. These machines are used extensively in the production of leather shoes, sport shoes, leather bags, gloves and - with the addition of a speed reducer ($155.00 option), this machine is excellent for sewing patches on hats and similar odd-shaped items.

TECHNICAL SPECS:

• Max sewing speed: 3000spm
• Max stitch length: 4 mm
• Needle bar stroke: 33.4 mm
• Take up stroke: 61.5 mm
• Presser foot lift by hand: 7.2 mm
• Presser foot lift by foot: 10 mm
• Needle size: DPx5 #14-18

MACHINE SETUP:

This machine ships complete and fully assembled - ready to sew upon arrival.

The machine set-up includes:

• Machine Head

• Table Top
• Heavy Duty Stand
• SERVO Motor
• Thread Stand
• LED Light
• Extra needles, bobbins

MOTOR & VOLTAGE:

This machine is equiped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
